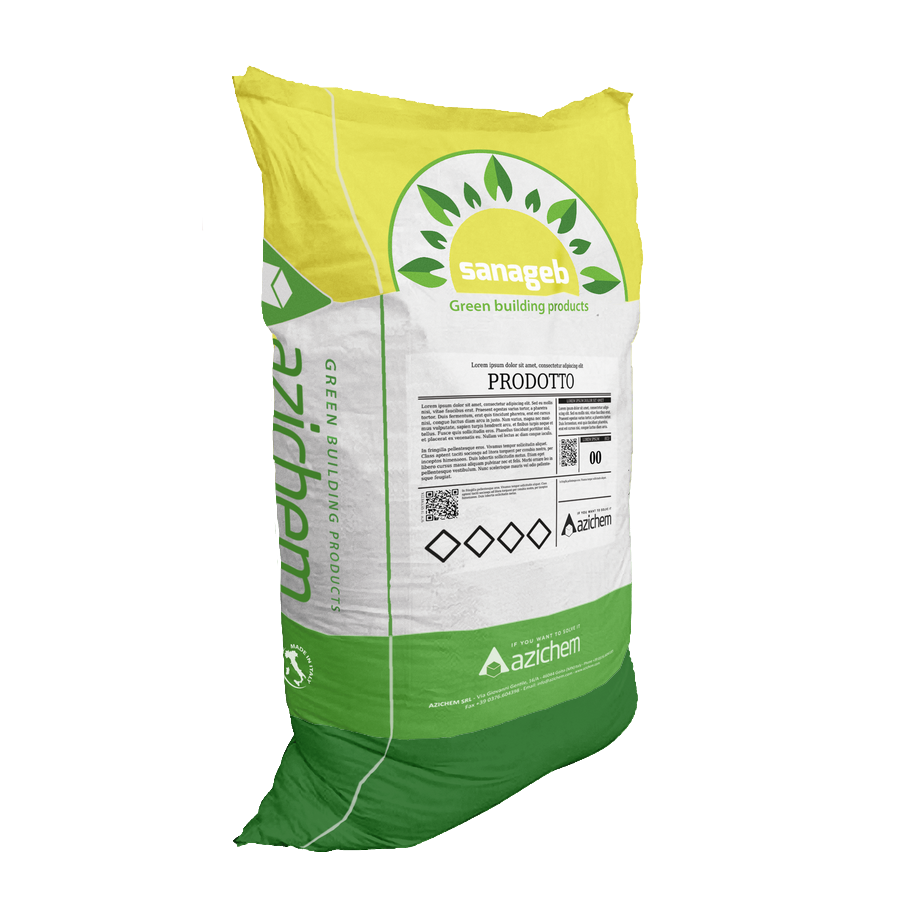

ANCHORSANA FIX
Quick compound, lime and aluminate based, for fixings and anchors
Código: INT.0018
Componentes: 1
Aspecto: Polvo
Premixed based on hydraulic lime, special sulfur aluminate binders, water retainers, shrinkage compensators and reducers of the water/binder ratio, used for fixing and anchoring, in masonry, connectors, inserts, bars, brackets, grouting of the joints, tacking of lesions. It is a product with accelerated setting and hardening, with setting start at 30 ', end setting at 60' and development of mechanical strength already after 90 'of curing. Particularly recommended in the restoration of period and monumental buildings.
Familia
Código de Aduana
Linee di appartenenza
Certificados obtenidos y Normas
EN 998-1
Morteros para enlucidos internos y externos - Mortero para usos generales (GP)
EN 998-2
Morteros de mampostería - Mortero de mampostería para usos generales (G)
M20
EN 998-2
Características generales
Diámetro máximo agregado: 0.5 mm
Peso específico: 1.97 kg/dm³
Pot life: 15 min
Mezclar con agua: 23 - 30 %
Conservabilidad: 6 meses
Usar con guantes protectores
Temperatura de uso: +5 / +30 °C
No inflamable
Especificaciones técnicas
Reacción al fuego
A1 _
Módulo elástico estático
11000 N/mm²
Endurecimiento completo
60 min
Resistencia a la flexión a los 28 días
> 6 MPa
Permeabilidad al vapor de agua
≤ 35 _
Absorbimiento capilar
< 0.50 kg•h^0.5/m²
Endurecimiento al tacto
30 min
Resistencia a la flexión a 01 día
> 4 MPa
Resistencia a la compresión a los 28 días
> 20 MPa
Ligadura de adherencia
> 1.0 N/mm²
pH
> 12 _
Resistencia a la compresión después de 1,5 horas
> 4 MPa
Resistencia a la compresión a los 01 día
> 13 MPa
Colores disponibles
- Gris claro
Embalajes y dimensiones
- Pallet: 50 x (Saco 25 kg)
- Saco 25 kg
Características
The particularly fine constituent materials allow adequate anchoring even in the presence of a small space between hole and connectors. By mixing ANCHORSANA FIX with different water contents, the product passes from thixotropic consistencies (23% water) to fluid gel consistencies (30% water), allowing any type of anchoring, from overhead to inclinations towards the bass. The product does not contain resins and solvents and can also be used indoors, subject to the usual precautions necessary when handling materials based on alkaline and irritating powders such as lime (use suitable personal protective equipment, such as gloves and protective goggles).
Consumos
Approximately 1.6 kg of ANCHORSANA FIX for each cubic decimeter of volume to be filled.
Campos de uso

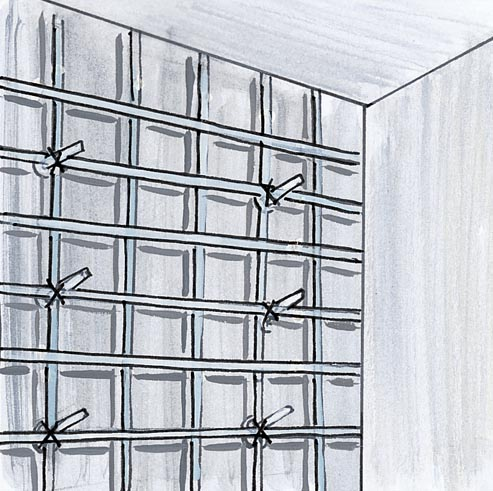

Fixing and anchoring, in masonry bodies, of rigid connectors, jib connectors, inserts, bars with improved adherence, anchors. It develops great adhesion on materials of different nature: metal, fiberglass, basalt.
Preparación de los soportes
Blow with compressed air and forced suction of the housing holes. The application surfaces must be clean, free of dirt, moving, crumbly and incoherent parts, dust, etc., suitably saturated with water until reaching the condition of "saturated with dry surface".
Modos de empleo
Pour about 2/3 of the mixing water into the mixer; gradually add ANCHORSANA FIX and the water still required, continuing to mix, until a homogeneous, lump-free mixture of the desired consistency is obtained. Apply with a trowel or by casting. The mixing water indicatively required is equal to 23% by weight for thixotropic doughs, and to 30% by weight for doughs with a plastic-fluid consistency.
Métodos de aplicación
- Coladura
- Paleta
Limpieza de herramientas
- Agua
Soportes permitidos
- Bloque delgado de hormigón de fundación
- Enlucidos
- Hormigón
- Ladrillos
- Mamposterías de ladrillo perforado
- Mamposterías de piedra
- Mamposterías mistas
- Morteros de hormigón, al cal y mixtos
- Tufo
